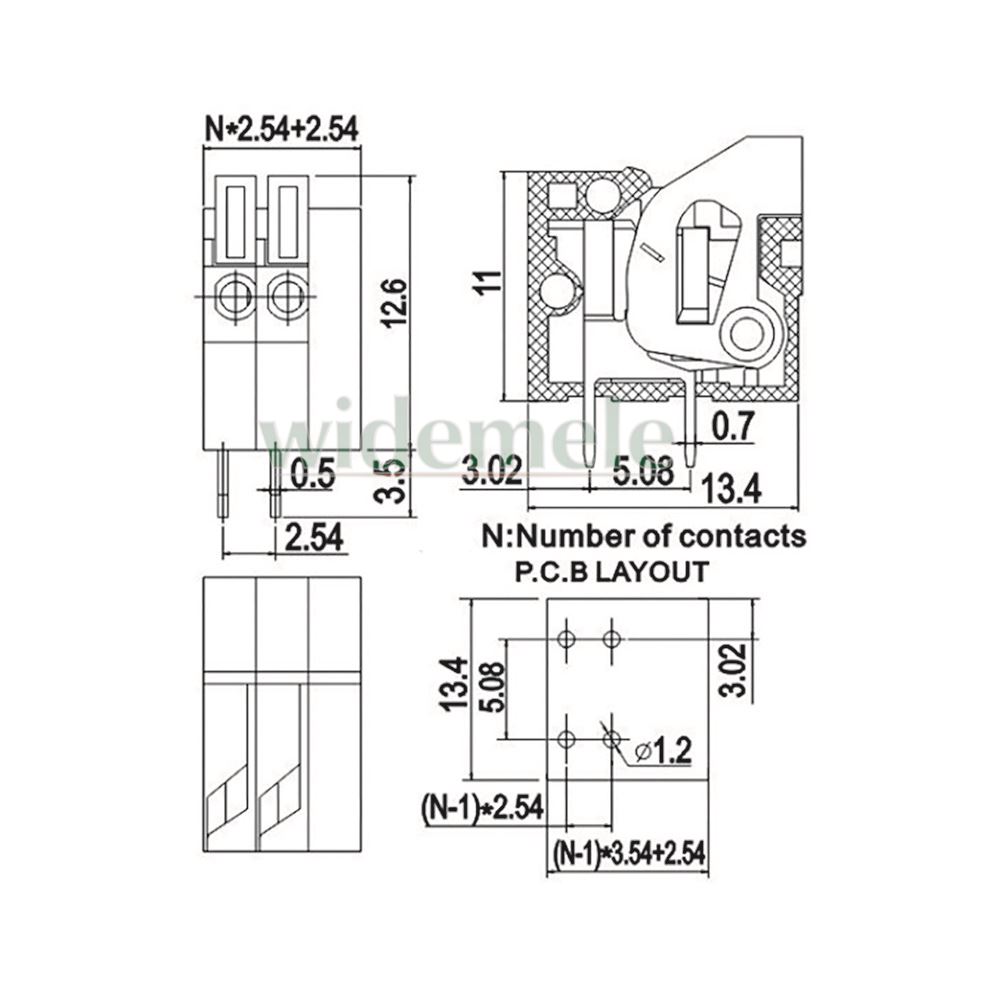

PCB Screwless Fixed Terminal Blocks 141R

Update Time: 2024/11/23   | Type： 141R



Brand: Widemele
Description: PCB Screwless terminal block, with a structural design that combines convenient wiring and secure screw connections, can connect all types of wires with a cross-sectional area of 0.2mm ² to 35mm ², with a spacing pitch of 2.54mm to 15.0mm to choose. The product design complies with international standards such as IEC/EN60998 and UL1059. Common spacing pitch: 2.54 3.5 3.81 5.0 5.08 7.5 7.62 10.16mm. The color is usually green or blue. | PIN distance: 6.35 7.62 8.25 9.5mm (02-09P) | Rated voltage/current UL: 300V/30A | Rated voltage/current IEC: 600V/32A | Voltage endurance: AC2500V/Min | Wire diameter: 22-12AWG 0.5-4mm ² | Temperature range: -40 ℃ -+105 ℃ | Tin adhesion: 260+/-5 ℃ | Torque: M4 12.24kgf.cm/1.2N.m/10.53Lb. in | Plastic parts: PA66, flame retardant: V-0 | Cover plate: PC | Plastic color: Black | Screw (steel/nickel plated) | Solder legs: brass plated with tin



Products details
